引込められたアルミニウムLEDのプロフィール
Created with Pixso.

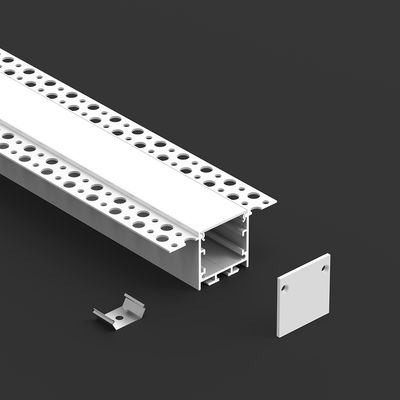

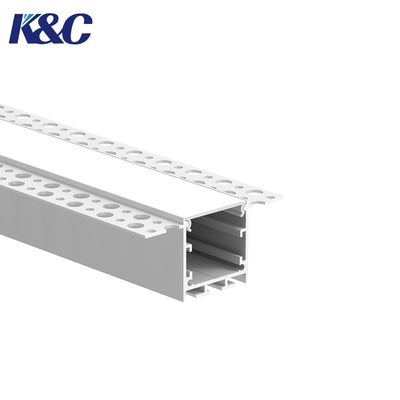

6063 T5 LED Mounting Profile with T5 Heatsink Design for High-Density Strips up to 18W/m and PCB Width up to 24.0mm

6063 T5 LED Mounting Profile with T5 Heatsink Design for High-Density Strips up to 18W/m and PCB Width up to 24.0mm

ブランド名: K&C
型番: K9
MOQ: 1メートル
価格: Negotiate
支払条件: D/A、L/C、D/P、T/T、ウェスタンユニオン、マネーグラム
供給能力: 100トン/月
詳細情報
起源の場所:
広東中国
証明:
ROHS
材料:
K9
アプリケーション:

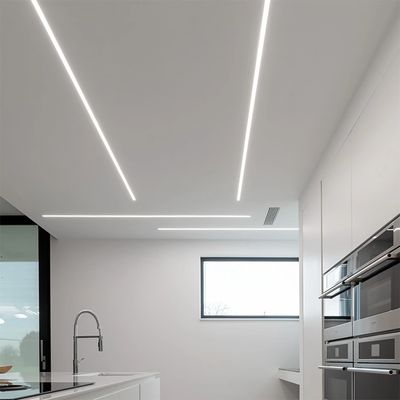

製品の装飾、ドアと窓、ラジエーター、LED、小屋
サイズ:

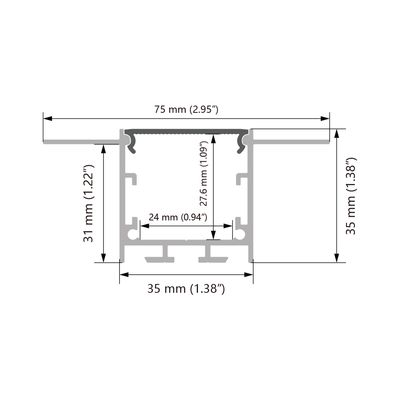

W75.0×H35.0mm
標準長:
3M/PCS カスタマイズ
終了する色:
シルバー/ホワイト/ブラック/ラル
表面処理:
砂吹きによる酸化
LEDストリップ互換性:
基板幅24.0mmまで
ディフューザー素材:
PC,PMMA
インストール:
組み込み装置
付属のアクセサリー:
末端カバー,チャック,スクリュー
パッケージの詳細:
内側 透明 PE バッグ+EPE FOAM+紙箱
供給の能力:
100トン/月
ハイライト:

T5 Heatsink Design LED Mounting Profile

,

High-Density Strips up to 18W/m Aluminium Extrusion

,

PCB Width up to 24.0mm Recessed Aluminum LED Profile

製品説明
6063 T5 Heatsink LED Mounting Profile K9: ROHS-Compliant Aluminium Extrusion for Strip Lighting

Customer: What's the core feature of K9 LED profile?

Merchant: It combines 6063 T5 heatsink extrusion with ROHS compliance for safe lighting.


Customer: Is it designed for easy LED strip mounting?

Merchant: Yes, features a snap-in channel for tool-free LED strip installation.


Customer: How effective is the T5 heatsink design?

Merchant: Reduces LED temperature by 15-20°C compared to standard profiles.


Customer: What's the maximum LED strip wattage it supports?

Merchant: Ideal for high-density strips up to 18W/m, perfect for commercial use.


Customer: Can it be used with dimmable LED systems?

Merchant: Fully compatible with PWM and 0-10V dimming controllers.


Customer: What mounting accessories are included?

Merchant: Comes with end caps, mounting clips, and screws for quick setup.


6063 T5 LED Mounting Profile with T5 Heatsink Design for High-Density Strips up to 18W/m and PCB Width up to 24.0mm 0
6063 T5 LED Mounting Profile with T5 Heatsink Design for High-Density Strips up to 18W/m and PCB Width up to 24.0mm 1
6063 T5 LED Mounting Profile with T5 Heatsink Design for High-Density Strips up to 18W/m and PCB Width up to 24.0mm 2
6063 T5 LED Mounting Profile with T5 Heatsink Design for High-Density Strips up to 18W/m and PCB Width up to 24.0mm 3
Product Features
  • High-strength 6061-T6 aluminum alloy construction
  • Superior heat dissipation for extended LED lifespan
  • Dual function as decorative skirting and lighting solution
  • Available in custom lengths and multiple finishes
  • Easy installation with multiple mounting options
  • Compatible with various diffuser types for optimal lighting effects
Frequently Asked Questions
Can I take samples?
Yes, we provide 20cm/pcs free samples and accessories, just freight cost is on you.
Why use aluminum channels for LED strips?
Aluminum channels dissipate heat (extending LED lifespan), provide physical protection, enhance light diffusion, and simplify installation.
How to choose mounting methods?
Recessed (requires grooves), Surface-mounted (adhesive/clips), Corner type (90° bends), Suspended type (floating effects).
What colors are available?
Standard: Silver/black/gold; custom RAL color spraying available.
What is the purpose of diffusers?
Eliminate LED dots for uniform light; options: clear (bright), milky (soft), black sand (anti-glare).
How do you ship the goods and how long?
Usually by international express delivery such as DHL, UPS, FedEx, TNT (3-7 working days), by air or by sea.
