引込められたアルミニウムLEDのプロフィール
Created with Pixso.

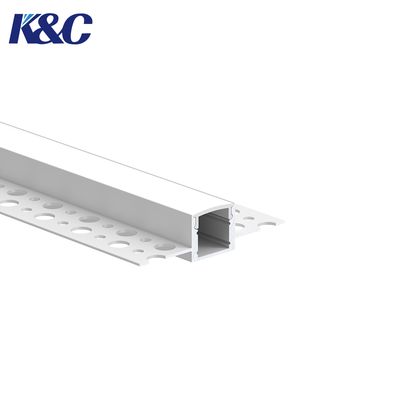

6063 Aluminum Alloy LED Mounting Profile with 3M Standard Length and W57.0 × H14.5mm Dimensions for Flush Mounting

6063 Aluminum Alloy LED Mounting Profile with 3M Standard Length and W57.0 × H14.5mm Dimensions for Flush Mounting

ブランド名: K&C
型番: K10-1
MOQ: 1メートル
価格: Negotiate
支払条件: D/A、L/C、D/P、T/T、ウェスタンユニオン、マネーグラム
供給能力: 100トン/月
詳細情報
起源の場所:
広東中国
証明:
ROHS
材料:
K10-1
アプリケーション:
製品の装飾、ドアと窓、ラジエーター、LED、小屋
サイズ:

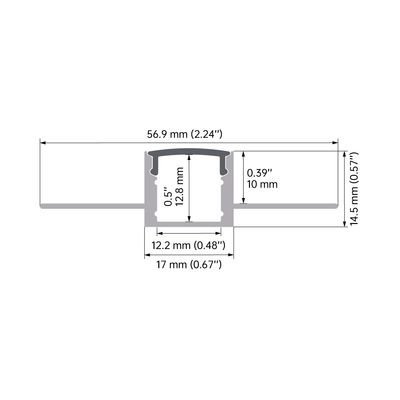

W57.0×H14.5mm
標準長:
3M/PCS カスタマイズ
終了する色:
シルバー/ホワイト/ブラック/ラル
表面処理:
砂吹きによる酸化
LEDストリップ互換性:
12.0mmまでのPCB幅
ディフューザー素材:
PC,PMMA
インストール:
組み込み装置
付属のアクセサリー:

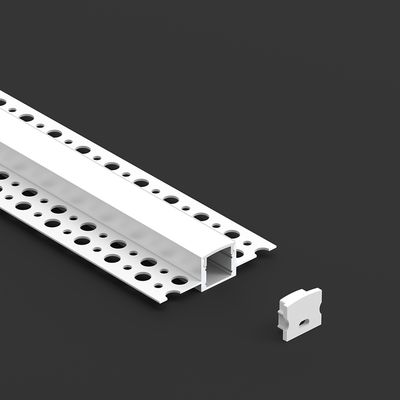

末端カバー,チャック,スクリュー
パッケージの詳細:
内側 透明 PE バッグ+EPE FOAM+紙箱
供給の能力:
100トン/月
ハイライト:

6063 Aluminum Alloy LED Mounting Profile

,

3M Standard Length LED Mounting Profile

,

W57.0 × H14.5mm LED Mounting Profile

製品説明
3M 6063 LED Mounting Profile K10-1: Aluminium Extrusion for Strip Lighting Installations

Customer: What is the standard length of K10-1 LED profile?

Merchant: It comes in 3m extruded lengths, suitable for long linear lighting runs.


Customer: Is K10-1 designed specifically for embedded installation?

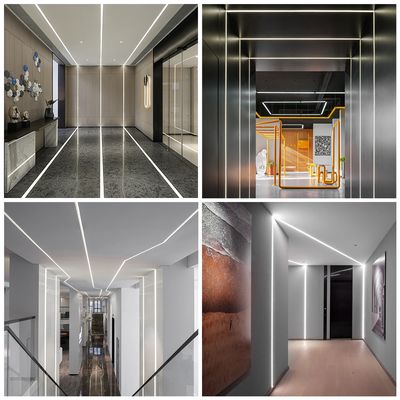

Merchant: Yes, optimized for flush mounting in ceilings, walls, and architectural recesses.


Customer: What makes the T5 heat sink effective?

Merchant: T5 extrusion design increases surface area by 40% for superior heat dissipation.


Customer: Can it be cut to custom lengths on-site?

Merchant: Easily cuttable with standard aluminum saws for precise fitting.


Customer: What material ensures its durability?

Merchant: High-grade 6063 aluminum alloy with T5 heat treatment for strength.


Customer: Is the diffuser replaceable?

Merchant: Yes, snap-in PMMA diffuser can be replaced for different light effects.


6063 Aluminum Alloy LED Mounting Profile with 3M Standard Length and W57.0 × H14.5mm Dimensions for Flush Mounting 0
6063 Aluminum Alloy LED Mounting Profile with 3M Standard Length and W57.0 × H14.5mm Dimensions for Flush Mounting 1
6063 Aluminum Alloy LED Mounting Profile with 3M Standard Length and W57.0 × H14.5mm Dimensions for Flush Mounting 2
6063 Aluminum Alloy LED Mounting Profile with 3M Standard Length and W57.0 × H14.5mm Dimensions for Flush Mounting 3
Product Features
  • High-strength 6061-T6 aluminum alloy construction
  • Superior heat dissipation for extended LED lifespan
  • Dual function as decorative skirting and lighting solution
  • Available in custom lengths and multiple finishes
  • Easy installation with multiple mounting options
  • Compatible with various diffuser types for optimal lighting effects
Frequently Asked Questions
Can I take samples?
Yes, we provide 20cm/pcs free samples and accessories, just freight cost is on you.
Why use aluminum channels for LED strips?
Aluminum channels dissipate heat (extending LED lifespan), provide physical protection, enhance light diffusion, and simplify installation.
How to choose mounting methods?
Recessed (requires grooves), Surface-mounted (adhesive/clips), Corner type (90° bends), Suspended type (floating effects).
What colors are available?
Standard: Silver/black/gold; custom RAL color spraying available.
What is the purpose of diffusers?
Eliminate LED dots for uniform light; options: clear (bright), milky (soft), black sand (anti-glare).
How do you ship the goods and how long?
Usually by international express delivery such as DHL, UPS, FedEx, TNT (3-7 working days), by air or by sea.
