導かれたストリップ アルミニウム プロフィール
Created with Pixso.

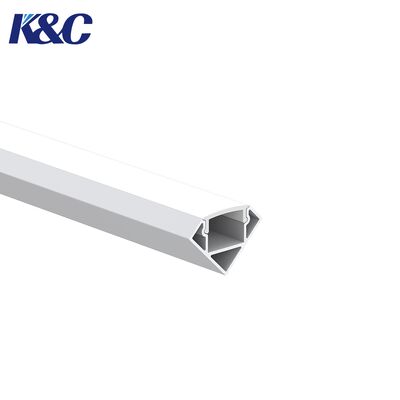

45° Directional 10mm LED Extrusion Profile for Surface and Corner Mounting in W18.0 × H18.0mm

45° Directional 10mm LED Extrusion Profile for Surface and Corner Mounting in W18.0 × H18.0mm

ブランド名: K&C
型番: K20
MOQ: 1メートル
価格: Negotiate
支払条件: D/A、L/C、D/P、T/T、ウェスタンユニオン、マネーグラム
供給能力: 100トン/月
詳細情報
起源の場所:
広東中国
証明:
ROHS
材料:
K20
アプリケーション:
製品の装飾、ドアと窓、ラジエーター、LED、小屋
サイズ:
W18.0×H18.0mm
標準長:
2M/PCS オーダーメイド
終了する色:
シルバー/ホワイト/ブラック/ラル
表面処理:
砂吹きによる酸化
LEDストリップ互換性:
PCB幅最大24mm
ディフューザー素材:
PC,PMMA
インストール:
組み込み装置
付属のアクセサリー:
末端カバー,チャック,スクリュー
パッケージの詳細:
内側 透明 PE バッグ+EPE FOAM+紙箱
供給の能力:
100トン/月
ハイライト:

45° Directional LED Extrusion Profile

,

10mm Strip Lighting LED Aluminum Channel

,

W18.0 × H18.0mm LED Strip Housing

製品説明
K20: LED Extrusion  45° Directional 10mm Strip Lighting for Surface/Corner Mounting

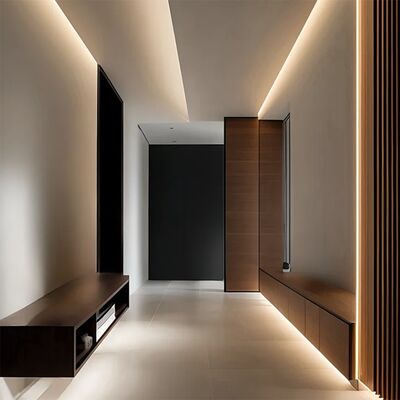

Our quality Corner led profiles are very well designed for 90-degree corner installations. Designed to highlight corners, perfect to provide an attractive and modern atmosphere on your commercial or architectural lighting projects. Easy Installation. Supplied in standard 1m or 2m lengths and cut-lengths can be customized upon request. Fitting colors can be customized as well.

Application

- The extrusion directs the light at a 45-degree angle

- For the construction of directional lighting fixtures
- For mounting on surfaces and in internal 90° corners

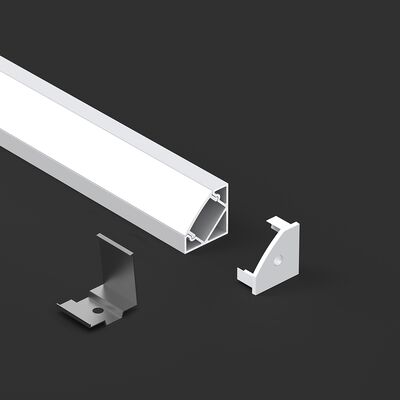

Assembly
- with a 45-degree mounting bracket for easy installation


Additional information
- Cover with simplified construction
- Lighting or illumination of certain areas.
- All types of grooves, inputs or surface edges
- Space for LED strip 10.0mm


45° Directional 10mm LED Extrusion Profile for Surface and Corner Mounting in W18.0 × H18.0mm 0
45° Directional 10mm LED Extrusion Profile for Surface and Corner Mounting in W18.0 × H18.0mm 1
45° Directional 10mm LED Extrusion Profile for Surface and Corner Mounting in W18.0 × H18.0mm 2
45° Directional 10mm LED Extrusion Profile for Surface and Corner Mounting in W18.0 × H18.0mm 3
Product Features
  • High-strength 6063-T5 aluminum alloy construction
  • Superior heat dissipation for extended LED lifespan
  • Dual function as decorative skirting and lighting solution
  • Available in custom lengths and multiple finishes
  • Easy installation with multiple mounting options
  • Compatible with various diffuser types for optimal lighting effects
Frequently Asked Questions
Can I take samples?
Yes, we provide 20cm/pcs free samples and accessories, just freight cost is on you.
Why use aluminum channels for LED strips?
Aluminum channels dissipate heat (extending LED lifespan), provide physical protection, enhance light diffusion, and simplify installation.
How to choose mounting methods?
Recessed (requires grooves), Surface-mounted (adhesive/clips), Corner type (90° bends), Suspended type (floating effects).
What colors are available?
Standard: Silver/black/gold; custom RAL color spraying available.
What is the purpose of diffusers?
Eliminate LED dots for uniform light; options: clear (bright), milky (soft), black sand (anti-glare).
How do you ship the goods and how long?
Usually by international express delivery such as DHL, UPS, FedEx, TNT (3-7 working days), by air or by sea.
