導かれたストリップ アルミニウム プロフィール
Created with Pixso.

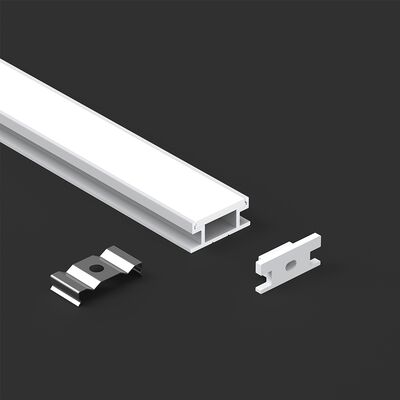

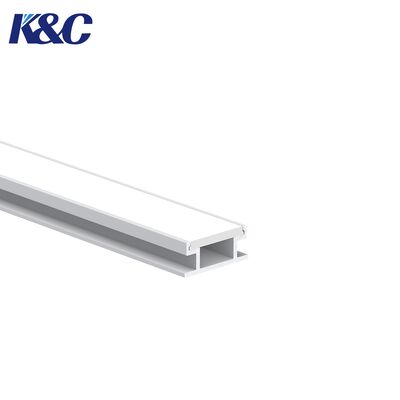

K43 6063 T5 Aluminum Alloy LED Strip Aluminium Profile with Anodized Surface for W19 × H18mm LED Mounting Channel

K43 6063 T5 Aluminum Alloy LED Strip Aluminium Profile with Anodized Surface for W19 × H18mm LED Mounting Channel

ブランド名: K&C
型番: K43
MOQ: 1メートル
価格: Negotiate
支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン
供給能力: 100トン/月
詳細情報
起源の場所:
中国広東省
証明:
ROHS
材料:
6063 T5 アルミニウム合金
応用:
屋内、屋外、展示会、ホテルの装飾 - LED ライト ストリップ設置ベース
サイズ:
W19×H18mm
仕上がり色:
シルバー/ホワイト/ブラック/RAL
標準長さ:
2M/3M/5M/PCS カスタマイズされた
表面処理:
サンドブラスト酸化
LEDストリップの互換性:
PCB幅最大10mm
ディフューザー材:
PC、PMMA
インストール:
表面実装のインストール
付属品:
エンドカバー、チャック、ネジ
パッケージの詳細:
インナークリアPEバッグ+EPEフォーム+カートンボックス
供給の能力:
100トン/月
ハイライト:

6063 T5 Aluminum Alloy LED Strip Aluminium Profile

,

Anodized Surface LED Mounting Channel

,

W19 × H18mm Size LED Aluminum Channel

製品説明
K43 Anodized Aluminium Profile: Heavy-Duty LED Mounting Solution for Lighting Systems

K&C Company specializes in manufacturing and selling LED aluminum profiles, offering over 200 models across multiple product series to meet diverse application requirements. Our products are favored in the market for their superior quality. We sincerely invite cooperation and enclose the latest product catalog for reference.

  • Material: 6063 aluminum alloy

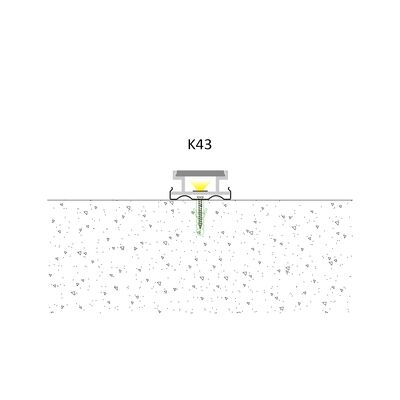

  • Installation: Surface mount installation

  • Strip Compatibility: Max 10mm width

  • Optical Accessories: Transparent/frosted PMMA diffuser

  • Special Treatments: Anodizing (standard silver, optional white/black), sandblasting

  • Physical Property: High thermal conductivity, prone to forming cold and hot bridges.

K43 6063 T5 Aluminum Alloy LED Strip Aluminium Profile with Anodized Surface for W19 × H18mm LED Mounting Channel 0
K43 6063 T5 Aluminum Alloy LED Strip Aluminium Profile with Anodized Surface for W19 × H18mm LED Mounting Channel 1
K43 6063 T5 Aluminum Alloy LED Strip Aluminium Profile with Anodized Surface for W19 × H18mm LED Mounting Channel 2
K43 6063 T5 Aluminum Alloy LED Strip Aluminium Profile with Anodized Surface for W19 × H18mm LED Mounting Channel 3
Product Features
  • High-strength 6063-T5 aluminum alloy construction
  • Superior heat dissipation for extended LED lifespan

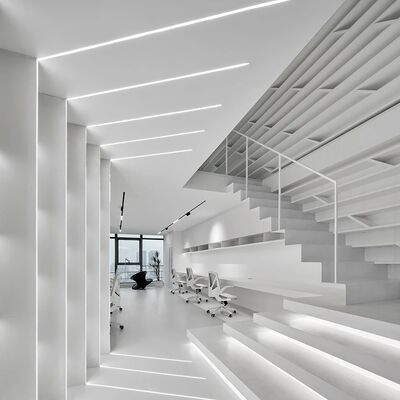

  • Dual function as decorative skirting and lighting solution
  • Available in custom lengths and multiple finishes
  • Easy installation with multiple mounting options
  • Compatible with various diffuser types for optimal lighting effects
Frequently Asked Questions
Can I take samples?
Yes, we provide 20cm/pcs free samples and accessories, just freight cost is on you.
Why use aluminum channels for LED strips?
Aluminum channels dissipate heat (extending LED lifespan), provide physical protection, enhance light diffusion, and simplify installation.
How to choose mounting methods?
Recessed (requires grooves), Surface-mounted (adhesive/clips), Corner type (90° bends), Suspended type (floating effects).
What colors are available?
Standard: Silver/black/gold; custom RAL color spraying available.
What is the purpose of diffusers?
Eliminate LED dots for uniform light; options: clear (bright), milky (soft), black sand (anti-glare).
How do you ship the goods and how long?
Usually by international express delivery such as DHL, UPS, FedEx, TNT (3-7 working days), by air or by sea.
